Overview

Plu-Keyboard



  • •Effective input solution for POS applications
    • Interface type : PS/2
    • Voltage and required current : 5V DC 50mA
    • Key switch type : Membrane
    • Size : 279(L) x 162(W) x 46(H)


Features

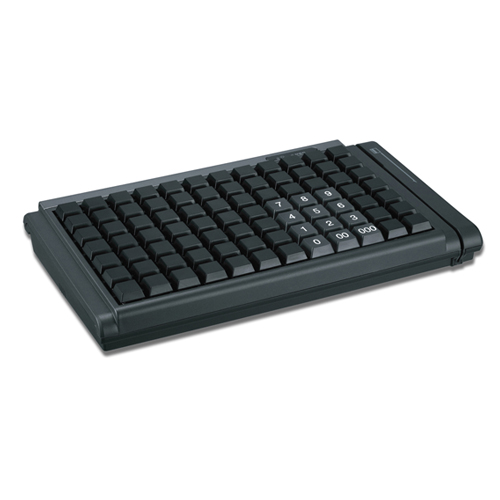

 The compact S84MSR keyboard is ergonomically designed programmable data input systems,

comprising an integrated magnetic stripe reader.


Flexibility
• 84 free-programmable key

Positions
• Key exchange technique
• Single, double and multiple keys

Electronic features
• Interface type : PS/2
• Voltage and required current : 5V DC 50mA
• Key switch type : Membrane
• Magnetic Stripe Reader (MSR) : option

Structural features
• Size : 279(L) x 162(W) x 46(H)
• Stroke : 2.5 ±0.5mm
• Action POS : 55 ±5g
• Lifetime of key switch : 10,000,000 times
• No.of keys : 84key
