JUNIOR Series

Overview

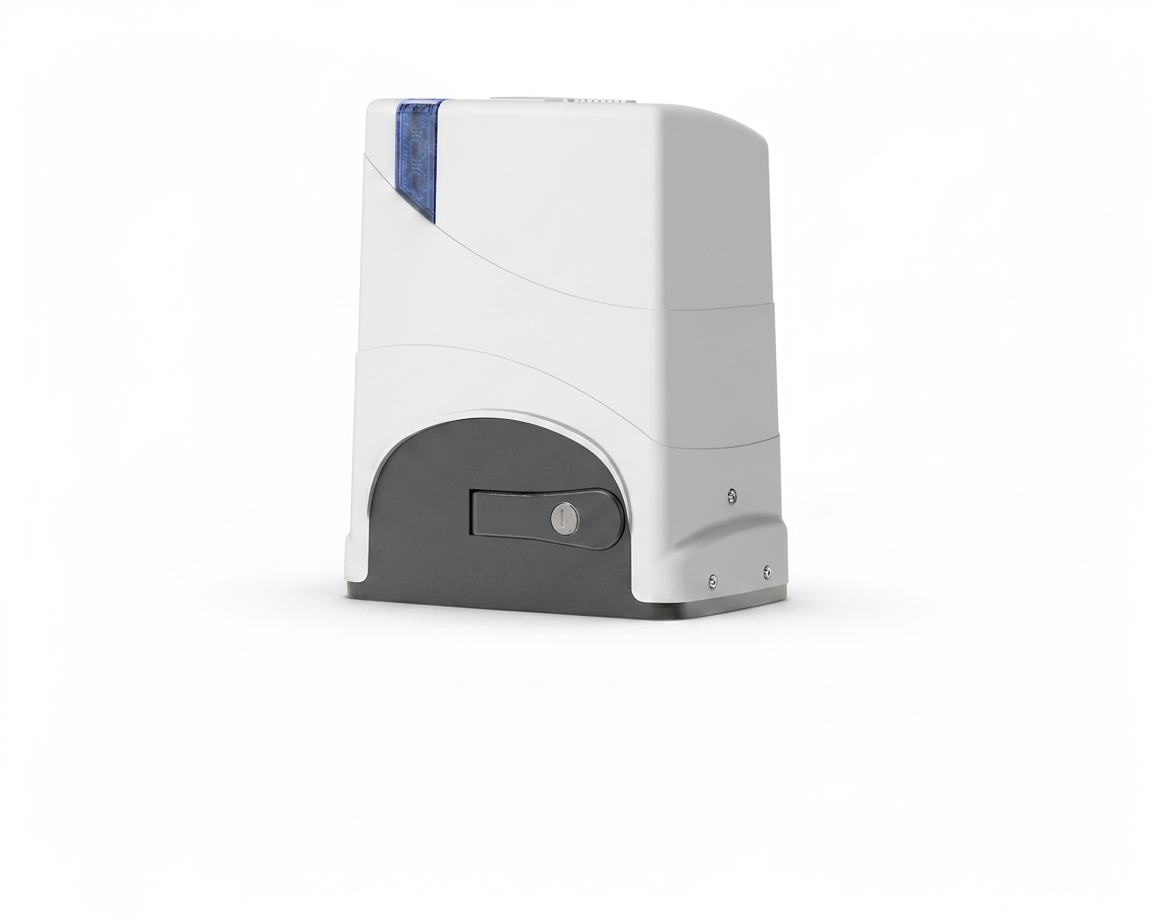

JUNIOR Series is a range of electromechanical geared motor operators designed for sliding gates, available in three versions to accommodate gate weights from 400 kg up to 1,200 kg. The series offers reliable, quiet and safe operation for residential and industrial applications, depending on the model.

Model    Max. Gate Weight    Power Supply    Application
JUNIOR 624    400 kg    24 Vdc    Residential
JUNIOR 633    600 kg    230 Vac    Residential & Industrial
JUNIOR 650    1,200 kg    230 Vac    Industrial

Features

Features
DESIGN:- Modern style, the cover is fitted with a blue LED light indicating status of the automation.
QUIET:-
•    JUNIOR 624: 24 Vdc geared motor operator, coupling of worm and plastic crown gear in oil bath, on ball bearings.
•    JUNIOR 633: 230 Vac geared motor operator, coupling of worm and plastic crown gear in oil bath, on ball bearings.
•    JUNIOR 650: 230 Vac geared motor operator, coupling of worm and bronze crown gear in oil bath, on ball bearings.
SMART AND SAFE:- Gate travel is simple to program by a button, acceleration and deceleration on each cycle.
Magnetic limit switch. Anti-crush system by the combined action of the encoder and amperometric detection of obstacles reversing gate travel. Release by the aluminium handle by a key.
VERSATILE:- Double bi-parting sliding gate function available by selecting the master/slave option on ELPRO 62 for JUNIOR 624 and ELPRO 63 for JUNIOR 633 and JUNIOR 650.
Pre-set for battery backup in case of power failure for JUNIOR 624.
TESTED AND CERTIFIED:- In compliance with the European Norms EN 12445 and EN 12453 and CE marking following type tests.
