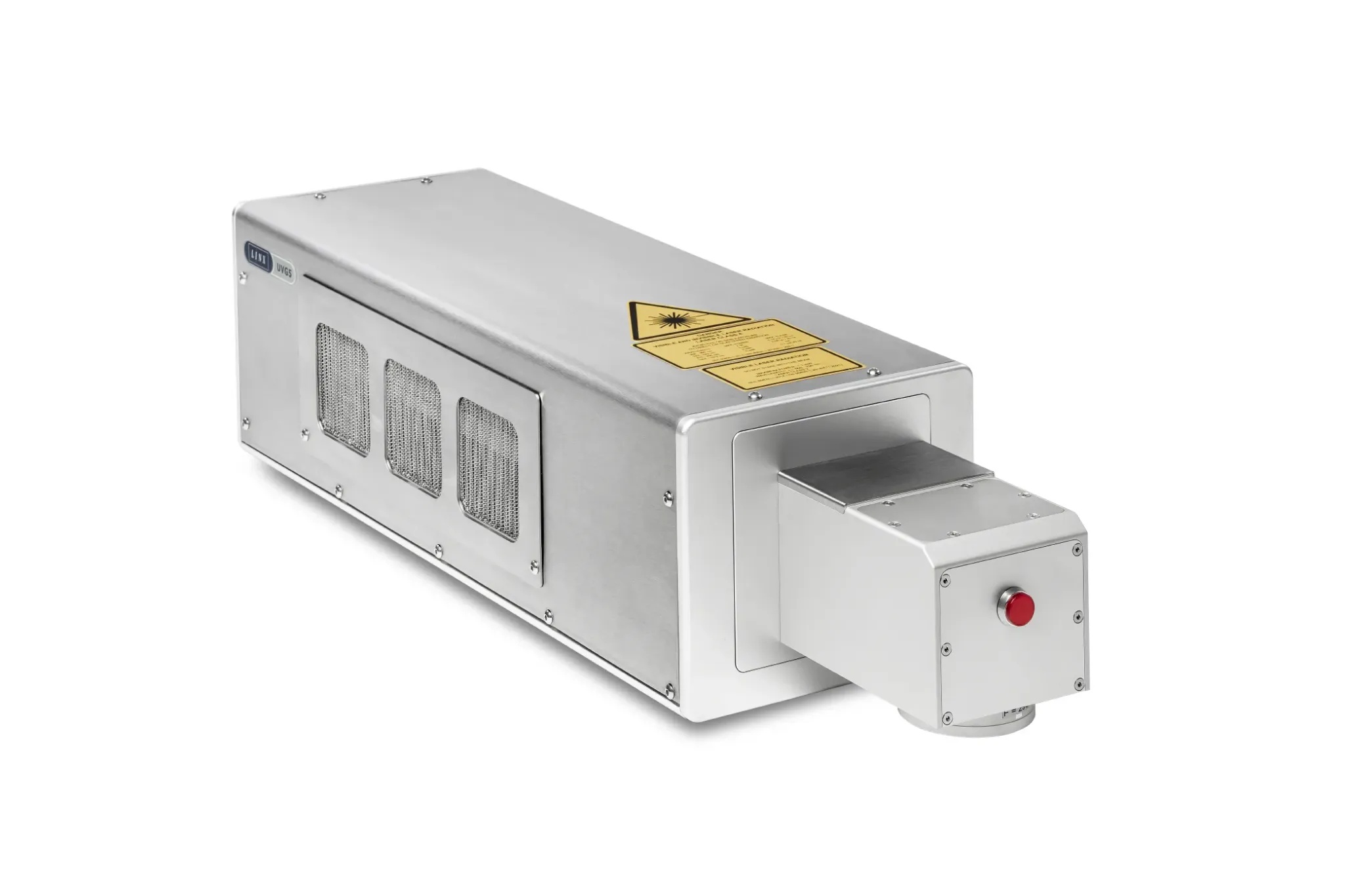

The Linx UVG5 UV laser coder is the ideal solution for permanent marking on flexible films and rigid plastics, without the need for consumables and whilst maintaining the integrity of the substrate. Providing higher production throughput through fast product marking, and with simple integration into existing lines, the easy-to-use Linx UVG5 laser redefines efficiency.
مميزات
Key Features and Specifications
- UV laser coder
- Maximum laser output: 4W
- Laser tube wavelengths: 355 nm
- Line speed: up to 600 m/min (application dependent)
- Maximum marking speed: 1200 m/min (application dependent)
- Marking area: Up to 259 mm x 393 mm
- Number of lines of text: only limited by character size and marking field size
- Character height: up to marking field size
- Print rotation: 0-360°
- Head mounting options: down (90°), or straight shooter (0°), variable length Beam Extension Units (BEU), 90° Beam Turning Unit (BTU)
- Pilot Laser, focus finder and focus shift, available as standard
- Code options: Code options: date, time, static text, variable text, serial numbers, shift codes, increment/decrement (batch count), 1D/2D barcodes, graphics and logos, Julian date, Custom date and time formats, 2D Data Matrix, QR including GS1.
- IP rating protection class: IP54 or IP65 (optional)
