Orbit HF680

الملخص

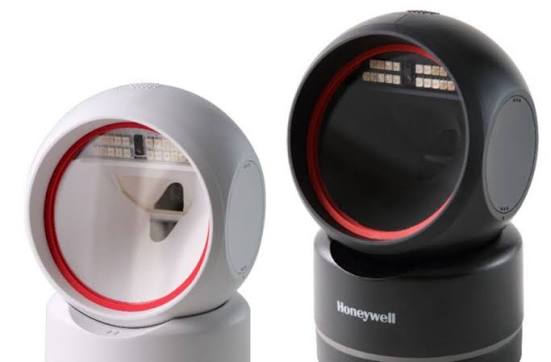

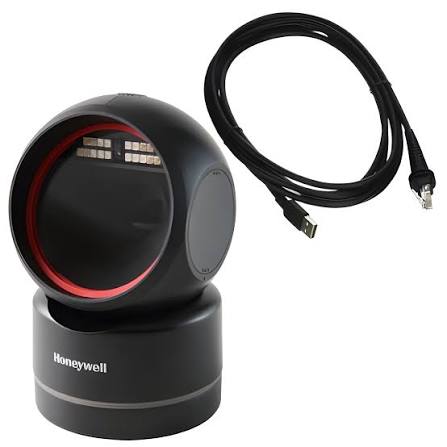

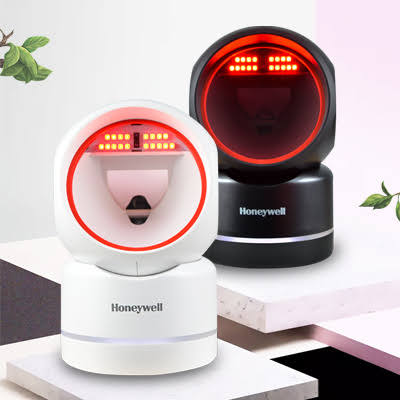

The Honeywell Orbit™ HF680 is a 2D hands-free presentation barcode scanner designed for retail point-of-sale (POS) counters, convenience stores, and checkout environments. Combining modern aesthetics with budget-friendly performance, it delivers rapid decoding of 1D, 2D, and digital mobile barcodes while maintaining a sleek footprint.

مميزات

Key Features and Specifications:

• Scanner Type    Hands-Free 2D Area Imager
• Image Sensor    1280 × 800 Pixels
• Processor    1 GHz
• Scan Speed    High-speed Area Imaging
• Supported Barcodes    1D, PDF417, QR Code, Data Matrix, Aztec, MaxiCode and other standard 2D symbologies
• Motion Tolerance    Up to 2.5 m/s (13 mil UPC)
• Minimum Resolution    1D: 3 mil
• 2D: 6.7 mil
• Scan Angle    Horizontal: 47°
• Vertical: 30°
• Pitch / Skew    ±60° / ±70°
• Print Contrast    Minimum 20%
• Reading Distance    Up to 300 mm (depending on barcode type and size)
• Interfaces    USB, RS-232
